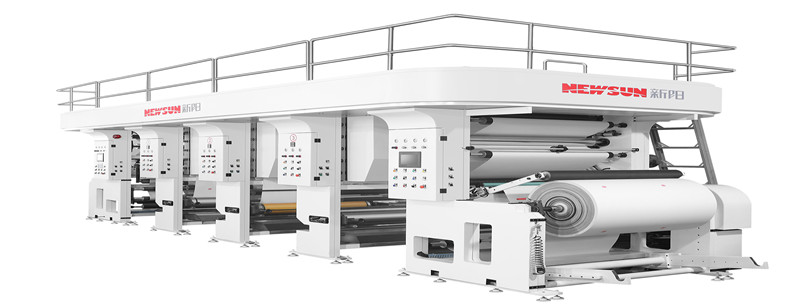

XYRA model High-speed Flexo Printing Machine

1. This machine is specially for paper printing.

2. Water-based ink printing, green enviromental protection, no pollution, in line with international environmental protection printing standard.

3. “Upper feeder” structure lower the position of ceramic anilox roller & printing cylinder so lower the center of gravity of printing unit, this make the printing machine running more steady,  completely solve the pollution of dust, flying ink to material.

4. Completely enclosed type doctor blade can supply quantitative ink, overcome the flying ink, ink leakage problem, saving the ink, can accurate control the ink quantity, make the ink transfering more steady, improving the printing quality.

5. This machine is 7 motor tension system.

6. Out-side turret type unwinder and rewinder unit, can realising auto slicing and splicing without machine stop.

7. Computerized Auto Registration control system with video inspection from KESAI company.

8. Fully automatic tension controller by PLC program from Seimens.

9. Pre-registration system to ensure easy registration, decrease material waste when machine beginning.

10. Shaft-less cylinder loading. Pneumatic back pressure moving doctor blade, three side adjusting and double air cylinder pressure.

11. Sealed type oven, outside heating system, hot-air circulation system, auto constant temperature control system.

12. Adopting aluminum alloy guide roll after anode oxidation processing and in balance.

13. High-accuracy gear transmission box, adopting patented technique.

14. Heavy duty QPQ carbone penetrate side walls.

This machine is used for printing paper, non-woven fabric, woven fabric.

It is widely used for food package, cigarette wine package, medicines package, daily necessities package etc...

Printing color number

4 inks

Printing material

Paper: 65-400 g/cm

Ink type

Water based ink

Max width of printing cylinder

1050 mm

Max width of raw material

1000 mm

Max length of printing

1200 mm

Max mechanical speed

170 m/min

Max.Printing speed

150 m/min

Auto registration control precision

Vertical: ±0.1 mm

Max Diameter of Unwinder

Φ1200 mm

Max Diameter of Rewinder

Φ1200 mm

Diameter of paper core

3 or 6 inch

Tension range


Tension control precision


Impression roller pressure


Doctor blade transverse move range
