current location :Home > Product > Rotogravure Printing Machines

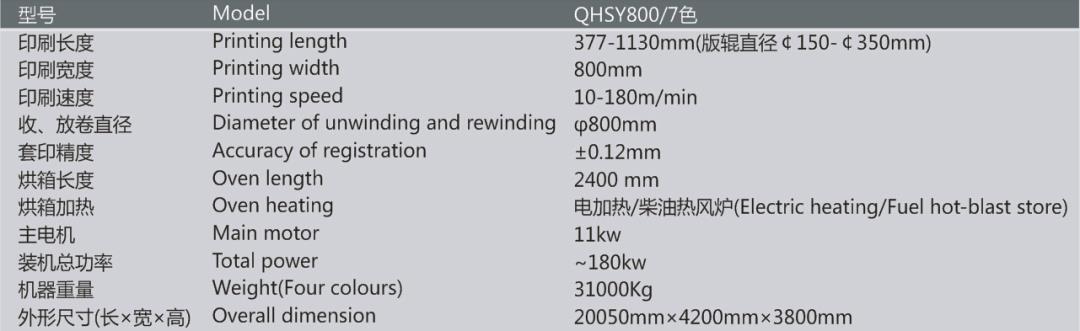

Model Series Computer High-speed Rotogravure Printing Machine (Full automatic tension seven motors)

1. Adopting frequency vector conversion motors control the main motor, unwinding and rewinding, and tension of them. (seven motors controlled)

2. Lengthways and transverse accuracy are controlled by the full automatic registering device, as well as the advance lengthways accuracy function.

3. Still graphics reveal system is installed.

4. Non-shaft pneumatic conic node printing plate loading, be prompt and convenient when change printing plate.

5. Obturated hot wind circulation oven, automatic constant temperature, diesel oil air-stove or electrical heating for the drying methods. Outside-set heating style, hot wind circulation, sewed source and protea environment.

6. Pnenmatic pressure knife, single motor controls the moving way, the moving frequency is adjustable.

7. Holistic moving oil frame, gas activity septum pump circulation.

8. High accuracy gear transmission box.

9. Unwinding and rewinding both worked by the dual-station mechanism, realizing auto material change without machine halt at high speed, adopting the pneumatic rollers for the draw in and out.

10. Adopting the wind blower.

11. Less transmutation material, warm-up oven drying the material before printing.

This machine is suitable for continuous multi-color printing or rolling material in good performance, such as cellophane, BOPP, PET, PVC, PE, Aluminum foil, Tobacco packing, yew paper, Liquid paper box and rolling paper (30-300g/m2).
